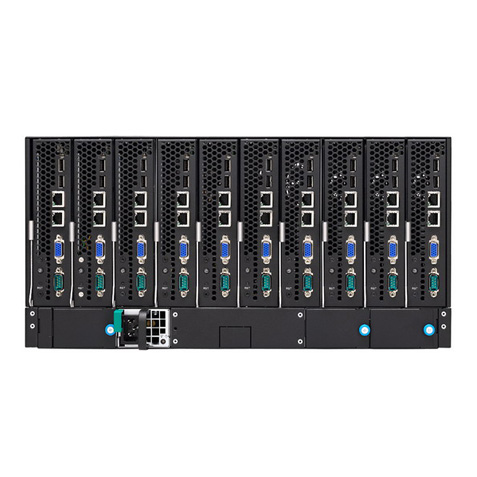

DreamMicro Atom Fanless Blade x10 NetServer

$11,499 RRP (Inc-GST)

Reviews & Awards

Product Information

10x Atom based fanless Blade, IPMI or IKVM
Atom Dual Core CPU 330, 1.6GHz
Max. 20 nodes in 19” 5U rack mount chassis
For IPDC (internet portal data center) application
Support IPMI or IKVM for remote management
Low cost, Low power consuming


CPU Intel Atom dual core 330, 1.6GHz
Chipset North bridge Intel 945GSE, or Aspeed AST2050 South bridge ICH-7M
Memory DDR2 533/400, 2x SO-DIMM, up to 2GB
Storage 2x 2.5”SATA2 HDD, or 1x3.5” SATA2 HDD
Display 1xVGA
LAN 2x Gigabit LAN, (with IPMI in one port)
Raid 0, 1. Software
Input Power ATX
Display 1xVGA
USB 2xUSB2.0
LAN 2xRJ-45
COM 1xDB-9
Support IPDC Yes
Node Density 10 nodes in 5U enclosure
up to 20 nodes with back-to-back installation
Low Power Less than 30W per node
Remote Management Onboard IPMI available
Serviceability Hot swap node cages
Application Web-hosting, PC farm…etc.
Dimension(WxHxD) H221mm x W445mm x D350mm
