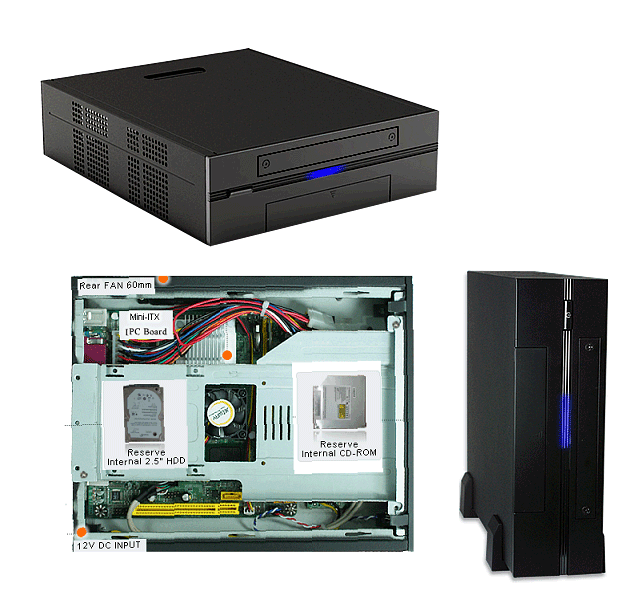

DreamVision Atom Mini PC J230

From
$399 RRP (Inc-GST)

Build your own

Reviews & Awards

Product Information

Intel®945GC Chipset + ICH7 Chipset

Intergrated Intel® Atom Dual Core CPU
(45-nanometer Hi-k process, FSB 533-MHz, 1.66GHZ, 512-KB L2 cache)

Build- in Intel® GMA950 Graphics Core

Supports DDR2 533/667MHz

Intergrated Serial ATA2 3Gb/s

Intergrated ALC662 HD Audio CODEC with 6.0 CH

Support 10m/100m Lan

Supporrt Slim ODD drive

Small size

Easy to use

Specifications

Motherboard Specification
CPU Intel® Atom Dual Core D510 CPU 64 Bit
Chipset Intel® NM10 chipset
Memory 1 * 240-pin DIMM Slot
Supports DDR2 533/667MHz non-ECC ,un-buffered memory Max. 2GB
LAN 1 * Realtek RTL8102E PCI-E 10/100m Ethernet LAN
Audio Realtek ALC662 HD Audio CODEC with 6.0 CH
Storage 2 * Serial ATA2 3Gb/s connectors
1 * Floppy connector
1 * Ultra DMA 133/100 / 66 IDE connector
USB Embedded 8 * USB 2.0/1.1
Graphics Build- in Intel® GMA950 Graphics Core
Form Factor Mini-ITX Form Factor, M/B 170 x 170mm
Case Specification
Product size 210(W) x 258(D) x 65(H)mm
Specs Exposed 1 x Slim ODD Drive Bay and 1 x 2.5” HDD Drive Bay (Only support SATA 2.5” HDD)
Colors Black Color
Cooling Fan Side: 6cm Fan SLEEVE x 1
Front I/O Port 2 x USB(V2.0),
Rear I/O Port 4 * USB 2.0/1.1 ports
1 * PS/2 Mouse & 1 * Keyboard Combined connector
1 * RJ-45 ports
1 * Audio I/O ports ( Line-in, Mic and Line-out )
1 * VGA port
1 * COM port
1 * Parallel port for Printer
Power supply 100W DC-DC Power Converter
Standard Accessory IDE Converter Card (For Slim ODD Drive) x1
60W AC-DC Adapter x1
Power Cord x1
Stand x4
IDE CABLE x1
SATA CABLE x1
Application Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK
