DreamVision EV1608 8CH Surveillance Server

$1,799 RRP (Inc-GST)

Reviews & Awards

Product Information

Features:
MPEG4 Compression Technology.
Real Time Monitor and Recording.
Multi-Tasking: Recording, Display, Backup, Playback and Remote.
Support POS application.
Support up to 8*analog cameras or video servers simultaneously.
4DI/4DO.
Storage:- Support SATA RAID storage device; Provide RAID storage events including fail, rebuild and success.
Playback Search:- Search by Event (System & POS events); Time and Index.
Alarm Notification:- Alarm to Zoom/Motion to Zoom/Pop up message; Send Alarm message by FTP/SMS/E-Mail.
Max. 16 remote clients connection simultaneously.
Networking:- Ethernet/PSTN; PPPoE/DHCP/DDNS.
Support Backup Storage Device:- USB CD-RW, DVD-RW, Pen Drive; IDE CD-RW, DVD-R/RW.
Powerful CMS supported:- Remote Backup/Remote Setup/Remote Playback/Remote Monitor/EMAP.
S/W upgradeable via disc or internet.
Support 8 language.
Provide Powerful Central Manager System & IE Client.
Support Remote Monitor via GPRS & 3G Mobile Handsets.

Specifications

H/W SPEC (all-in-one M/B):- System: EV1608
System Host Board: DVA-5220-CV
Rear Accessory Board: DA-106-CV
Power Supply: PW-330ATXE-12V
CD-RW: 5.25" CD-RW
HDD Swappable Drawer: SATA Swappable Drawer
Housing: Black
Dimension: 432mm(W) x 102mm(H) x 350mm(D)
Temperature: -10degrees celcius ~ 50degrees celcius
Net Weight: 8.5Kg
SYSTEM SPEC:-
ETHERNET PORTS: 10/100 Ethernet connected * 1
USB: USB 2.0 * 2
COM PORTS: RS232 * 1
RS485 * 1
IDE/SATA: 40-pin IDE connectors * 2
One IDE for DOM and one IDE for CD-RW
SATA connectors * 3
Two connectors on board, one for the front panel swappable HDD drawer, one for internal HDD, Raid 1,0
One connector at rear I/O for external SATA device
AUDIO: 4 channel Audio-In & one Microphone-in
One Line-out (Stereo)
GPIO: 4 DI/4DO at rear I/O
IrDA: IrDA 1.0 compliant (Option reserved for Remote IR Controller)
VGA: One VGA connector at rear I/O
TV-OUT: Two TV-Out connector (BNC & Video) at rear I/O
LOOP-THROUGH: 8 channel loop-through (BNC)
FRONT PANEL I/O: Two USB connectors
One SATA swappable drawer
One 5.25" CD-RW
One HDD LED
One IR LED (Option)
One Sytem on/off LED
One System on/off switch button

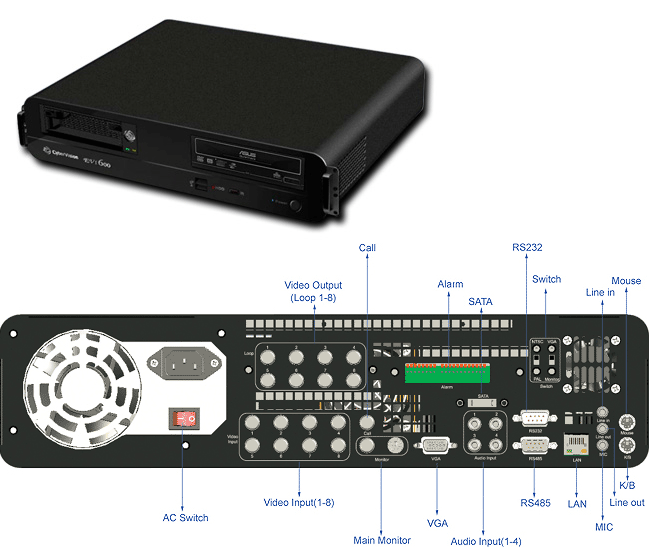

BACK PANEL I/O: Stacked two PS/2 connectors for Keyboard and Mouse
One RS232 COM port and one RS485 COM port
One VGA connector
Two TV-Out connectors (BNC & S-Video)
One SATA connector for RAID Storage Device
One RJ45 port connector w/LED for Network
4 Audio-in (RCA type)
One Microphone-in, One Line-Out
8 channel Loop-through (BNC)
8 channel Video input with BNC connectors
1 call monitor with BNC connector
4 DI/4DO
110V/230V AC switch button and one Power on/off button
