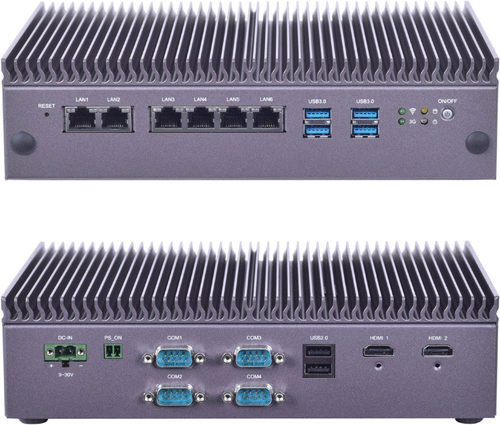

DreamVision L25 Fanless Mini PC

$1,099 RRP (Inc-GST)

Build your own


Platform CPU: Intel® Core™ i7-6600U/i5-6300U/i3- 6100U
BIOS: AMI 128Mbit SPI Flash BIOS
Memory Technology: DDR3L 1333/1600MHz
Memory Capacity: 16 GB
Memory Socket: 2x 204-pin SODIMM
Storage SATA storage: 1x mSATA Socket, 2x 2.5” HDD/SSD Drive Bay (RAID 0/1)
Serial ports: 4x RS-232/422/485, DB9 Male
USB 2.0: 2x Type A
USB 3.0: 4x Type A
Power and Mechanical Power input: 1x Power On/Off
Type/Watt: ATX
Expansion: 1x Full-sized Socket with SIM Card Reader and 1x Half-sized Socket
Reset: 1x Reset
Fanless: Yes
OS and Certifications Operating System: WES7, Win 7 Pro FES, WE 8.1 Industry Pro, Win10 IoT, Kernel 3.12
Certifications: CE/FCC, Class A
Physical and Environmental Vibration: IEC 60068-2-64, 0.5Grms, Random 5 ~500 Hz, 40 Mins/Axis
Storage temperature: -20°C to 70°C
Operating temperature: 0°C to 60°C
Operating humidity: 5% to 95% (non-condensing)
Dimensions (W x H x D): 210 mm x 60 mm x 143.8 mm (8.27" x 2.36" x 5.66")
Watchdog: Watchdog Timer 1~255 Level Time Interval System Reset, Software Programmable
Casing material: Aluminum
